Product Features
1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.
2) Good heat emission, water proof and stable performance
3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting
signal
4) High resolution and definition of screen image, clear and non-flash screen image.
5) Supports video and radio frequency input, special structure can be freely assembled.
Specification
| Item | Technical Specification |
| Pixel | Pixel pitch: 3mm |
| Pixel configuration: 1R1G1B | |
| Brightness: Red: 600mcd Green: 2300mcd Blue: 500mcd | |
| Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm | |

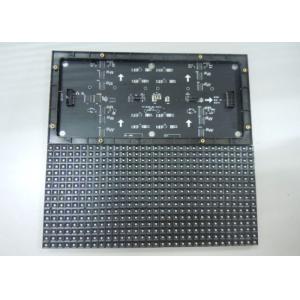

| Module | Module size: 192mmx192mm |
| Module resolution:64x64pixels | |
| Cabinet | Cabinet resolution:36864pixels |
| Cabinet material: Steel | |
| Gross weight: 15kg | |
| Module quantity: 3*3=9pcs | |
| Cabinet size: 576mm*576mm | |
| Power consumption : Max.:1000W/m² Average: 400W/m² | |
| Screen parameter | Drive method: 1/16 scan |
| Brightness: 2000cd/m² | |
| IC driver: MBI 5024 | |
| Density: 111111pixel/m² | |
| Whole display flatness: ≤ 1mm juncture | |
| Best view distance: ≥ 3m | |
| Viewing angle: Horizontal: 120° Vertical: 120° | |
| Humidity(RH): ≤ 90~95% | |
| Working temperature: from -20°C~ +50°C | |
| Working voltage: AC220V/110V±20% | |
| Refresh frequency: ≥ 300Hz(Linsn) | |
| Frame rate: ≥ 540Hz | |
| Protection grade: IP54 | |
| MTBF: More than 10000hrs | |
| Life time: 100,000 hrs | |
| Control system | Control system: Linsn |
| Signal interface: DVI | |
| Communication distance: The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | |
| Systems operating platforms :XP,WINDOWS(WIN95,WIN98,WIN2000) | |
| Input Signal:RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | |
| Image adjustment:contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc | |
| Life span:100,000 hours | |
| Out-of Control rate:0.0001 | |
| Control system:Synchronized | |
| Operating Environment Temperature :-20℃—65℃ Optional |
Outdoor LED Display series :
1.Automatic brightness control,super processing ability,strong colour restoration.
2.Support various interfaces and signal sources.
3.Advanced digital control technology, excellent effect.
4.High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of your full color outdoor led display screen's investment.
5.Antiseptic and durable, can be used outdoor in all weather.
LED module has easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system.
With full aluminum alloy structure for light weight and waterproof advantages, HJY outdoor led display is an perfect external multimedia LED display system designed for changeable and adverse outdoor environment.
Indoor LED Display series :
The indoor led screen uses high-quality LED, which has high efficiency luminescence,decreased attenuation of brightness,high stability and reliability. Super uniformity in color. Low-budget, high pixel density,more vivid and stable pictures(No Flickering). The ultra-slim and ultra-light weight structure of indoor full color led display,increased design opportunities and lower transportation costs. SMD technology takes super wide viewing angle for the LED display; better color performance,higher contrast ratio and higher refresh rate. The super thin rental indoor led display features low weight,special rigging system for simplified service,hassle-free mounting, easy configuration and maintenance,and several other enhancements that are unmatched in the industry.
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 4g and wifi controll will be welcome)
